Selecting A Data File

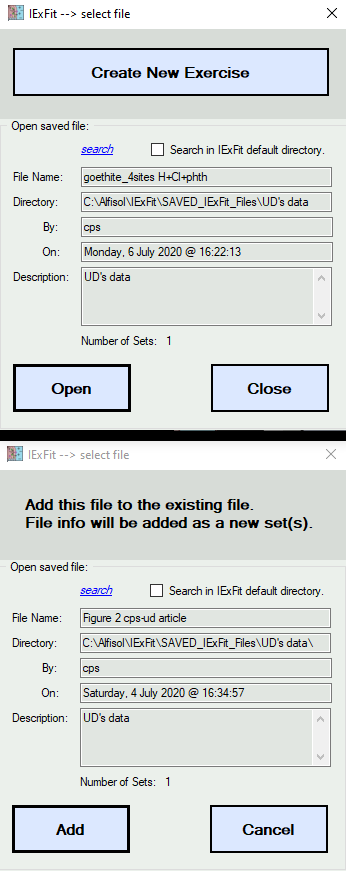

This window opens with the data file used most recently. It gives basic information about the file. Click "search" to change files. The IExFit default directory is located in the program's root directory. Click "Open" to view or edit the file. Click "Create New Exercise" to start fresh. Two options for selecting a data file are shown here: top version: normal view on first file opened. bottom version: view when adding files to an existing file.
