Step 3: Run Aqueous Speciation - Tab: pe-pH or Eh-pH

Click on the "pe-pH" tab to view the distribution of each of the solids formed as a function of pH.

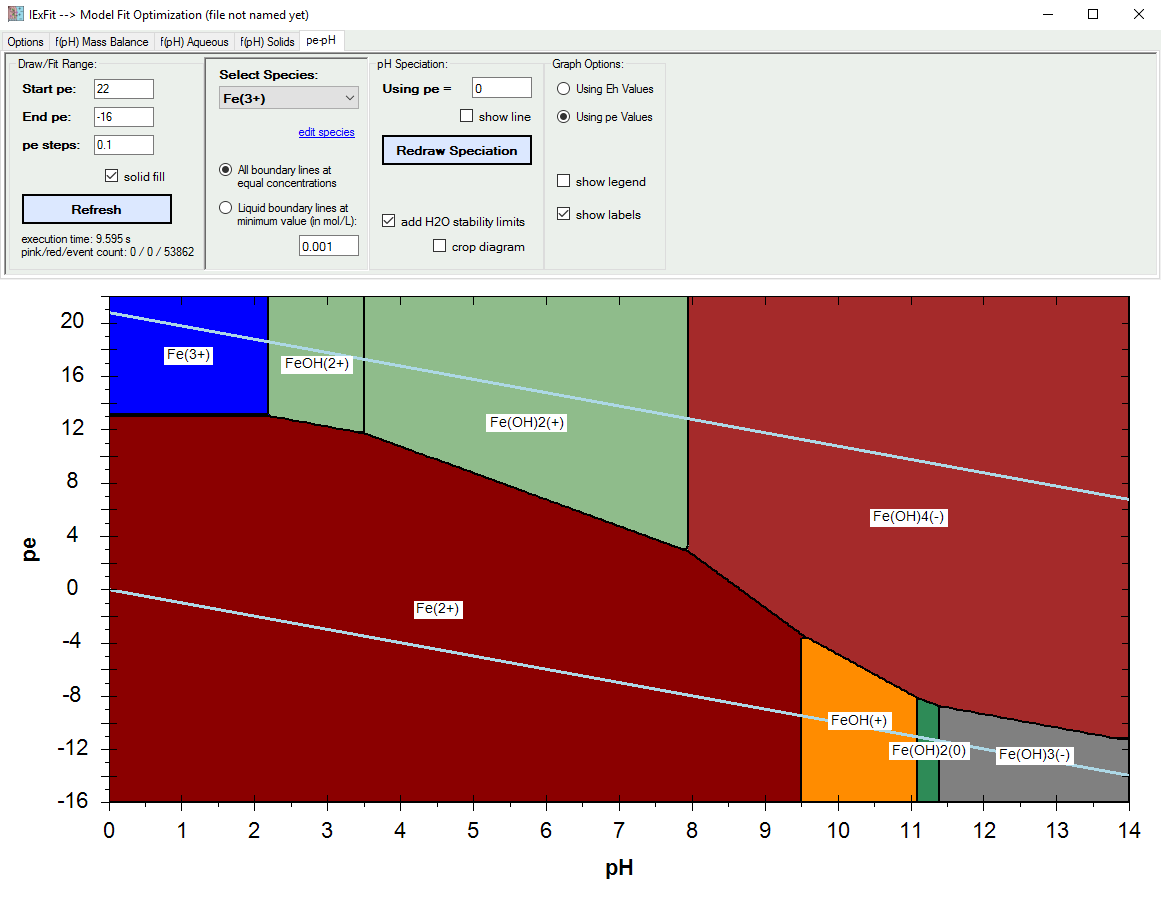

In the example below, we see the pe-pH redox diagram for iron(II) and iron(III).
